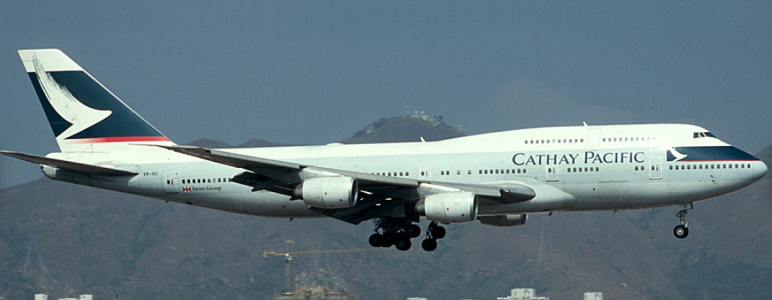

Model teaser from HX model, partially physical.

[Phantom]

Does this mean there are two versions of the 743 wing? One uses the -200 wing, and the other uses the same wing as the -200, but with a leading edge similar to the -400 wing (WBF)?
(Sorry, although I know the 743 is somewhat special, I still don't quite understand it. Do anyone have a deeper understanding/photo reference?)

The -300 has the wing of a -200. Late built airframes received some mods from the 744 program like a refined WBF etc. (1988 built VR-HON was one of them)
A -400 wing is basically a classic wing with added span (wingtip extensions), adding a 6th outer wing slat segment plus winglets.

It already didn't help NG and already also not HX, but just in case:

Thread 'Everyone's waiting for NG doing 747Classics in detail and correct all the way - so how many differences are there on a "747Classic"?'

Nov 24, 2022

Thought it might be fun to collect the various differences that can be spotted on a "747Classic" (1970 to 1991) - many of these are worth to be molded correctly, some details are sure over the top in 1/400 and are more for the serious (larger) scale modeler. So this is really just for the fun.


First and most classic 747: the 747-100 as seen in the early 1970's
Here's D-ABYC with the typical SATCOM aerial just aft of the upperdeck, HF-antennas on the wingtips, early "straight" pylons and JT9D nacelles with secondary air inlet ("blow in") doors. (Note that #1 is idling in this...

• Phantom
• Replies: 27
• Forum: 1:400 Scale

•
•



[Aircrafter93]

Indeed... You can't simply slap on a 747-400 wing, sand off the winglet and wingtip extension, and call it a late model 747-300 with the new wing-to-body fairing (WBF). The 747-300 is actually much closer to the 747-200 series, having an identical wing (except some late build 747-200s and 747-300s when they started adding the new WBF, such as examples flown by Sabena, Air India, Cathay, etc.). I believe these changes and/or aerodynamic improvements to the 747 Classics started being gradually rolled out on the Everett assembly line as the 747-400s starting coming onto the assembly lines.

I posted my question before even seeing this.

They definitely took the wing that was used on the ANA Pikachu jet.

Technically speaking, what is different about a later 747-300 WBF to a 747-400D wing? I am genuinely curious because I never even knew the 747-300 had an updated WBF



[LeoMuse747]

I posted my question before even seeing this.

They definitely took the wing that was used on the ANA Pikachu jet.

Technically speaking, what is different about a later 747-300 WBF to a 747-400D wing? I am genuinely curious because I never even knew the 747-300 had an updated WBF

Most of the B747-300s had the early WBF just like the B747-200.
Some late built B747-300s had the updated WBF like the B747-400.

The issue on this Cathay B743 model is the wingspan. They've used the B747-400 wing (which is longer). The length increase is noticeable at the wingtips.

By the way: the B747-400D should have the same wing of late built B747-300s:
updated WBF and short wingspan, without wingtip extension and antennas



[IndyJets]

Most of the B747-300s had the early WBF just like the B747-200.
Some late built B747-300s had the updated WBF like the B747-400.

In the model railroad world, we call these incremental production changes "phases"... for instance, here's a very detailed phase chart for the EMD SD40-2 with approximate production dates. https://www.trainiax.net/mephase-emdsd40-2.php

As you can see here, phase 4 (the very end of the production run, and actually only appeared on a very specific group of units built for Soo Line) applies the general characteristics of the 50 Series which had just entered series production at that time. Just like how the late 747-300s had some features of the -400.

Perhaps we could do a similar approach for aircraft, perhaps with the phase changes delineated by line number? I had always suspected that production phases for planes might be a thing (knowing that certain airworthiness directives are only applicable to certain line number ranges, for instance) but it would be nice to have a systematic approach for what specific changes were made, and if they're externally distinguishable or not.



[Aircrafter93]

Most of the B747-300s had the early WBF just like the B747-200.
Some late built B747-300s had the updated WBF like the B747-400.

The issue on this Cathay B743 model is the wingspan. They've used the B747-400 wing (which is longer). The length increase is noticeable at the wingtips.

By the way: the B747-400D should have the same wing of late built B747-300s:
updated WBF and short wingspan, without wingtip extension and antennas

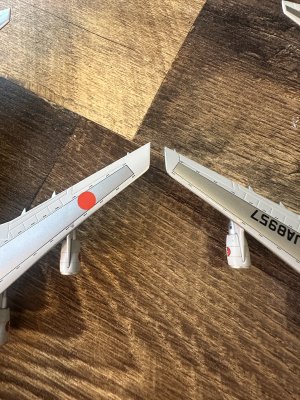

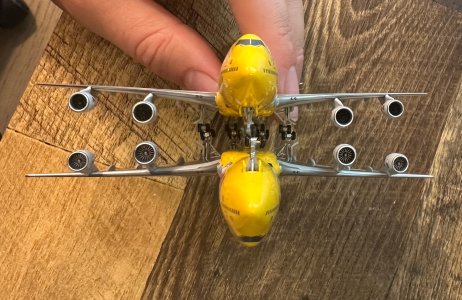

Interesting. Thanks for the info. So even the Pikachu Jet has an incorrect length.

Welp! Guess it’s time to bring out the sprue cutters and nail file to make it correct



[LeoMuse747]

Interesting. Thanks for the info. So even the Pikachu Jet has an incorrect length.

Yep, it's incorrect.
B747-400D have the same wingspan of Classic 747s.
HX is sadly using the 747-400 regular wing and just removing the winglets, which is wrong.



[vsr]

Wow that CX 744 sold out fast



[pons399]

Wow that CX 744 sold out fast

It’s still up on Taobao



[vsr]

It’s still up on Taobao

I managed to snag one this morning haha. At least on futurewings, the flaps up version was gone within hours.
